Red-light heated massage belt
An air-column lumbar belt that inflates by its own electric pump and adds six heat steps, red light and vibration on a 5,000 mAh battery. One of the four models the factory currently produces.
- Model
- M1001-R
- Indicative price
- $33 per set
- Price basis
- Ex-works at 500 sets
- Availability
- In production
Ex-works, quoted at 500 sets; at 1,000 sets it moves by well under a dollar.
M1001-R key features
- The M102R belt body, powered. The same 1,148 × 129.5 mm air-column belt with a heating panel and its own electric pump.
- Six heat steps from 40 to 65 °C, plus 55 red-light emitters at 650 nm and two vibration motors.
- 5,000 mAh polymer battery: about six hours to charge and 100 to 300 minutes of use, over USB-C at DC 5 V / 2 A.
- Complete set at $33 ex-works at 500 sets, with the electric pump, charger and cable, 12 sets to a 14.7 kg carton.

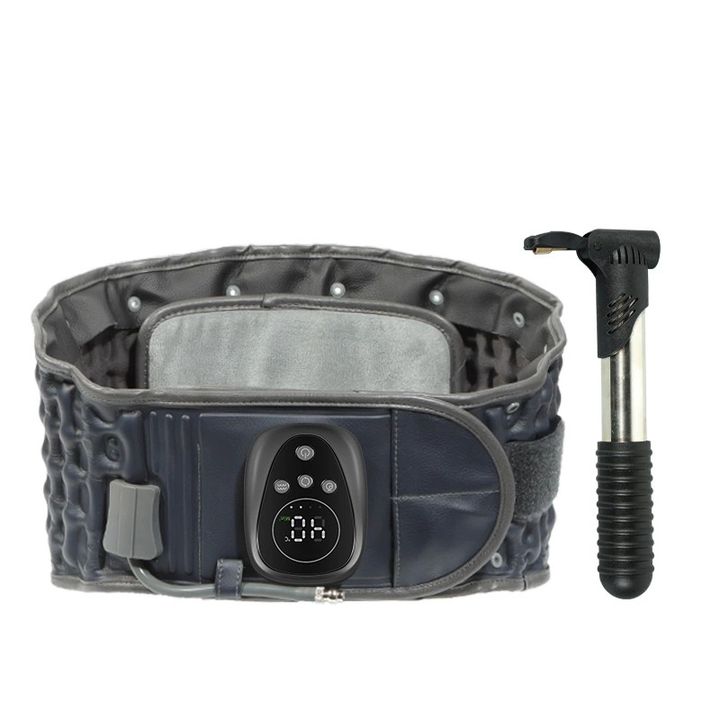

Model M1001-R is the same 1,148 × 129.5 mm belt body as the M102R with a powered panel and an electric pump added. It draws about 12 W over USB-C at DC 5 V / 2 A and has six heat steps at 40, 45, 50, 55, 60 and 65 °C, 55 red-light emitters at 650 nm and vibration massage, and a 5,000 mAh polymer battery that charges in about six hours and runs for 100 to 300 minutes. In PU and polyester.
Your brand on the M1001-R
Your own brand starts at 1,000 pieces. Send your logo, packaging format and artwork, and the quotation sets the cost and timing.
Below 1,000 pieces, we supply it unbranded; several models can also be supplied under the factory's own brands, GINEKOO or TEMPSNUG, so ask which applies to this model.
- Custom-project samples from 1 piece. The minimum for your project and the sample cost, courier and timing come with your quotation.
- Testing and documents for your destination: no current product certification is claimed. Earlier CE and UKCA certificates are held in a customer's name and cannot be shared, and that testing has not been repeated since. The factory offers to re-test in its own name: send the model, configuration and destination so the required testing, documents, cost and timing are agreed before you commit.
M1001-R packing and carton
| Version | Packed weight | Retail box | Carton |
|---|---|---|---|
| M1001-R full set | 1,145 g | 283 × 185 × 100 mm | 576 × 398 × 313 mm, 12 sets, 14.7 kg |
Ask for the pallet pattern with your quotation.
More views of the M1001-R
Quote the M1001-R on WhatsApp
Send the quantity, destination country and colour or configuration. The price above is the factory's quote at 500 sets; tell us the quantity you actually want and we will have it priced.
Notes
$33 per set is the factory's indicative ex-works price at 500 sets. At 1,000 sets it moves by well under a dollar. Freight, duty and custom packaging are extra, and your quotation states the exact configuration and current figure.
Specifications and packing figures are the factory's own product data for the current version.
The factory states that heating and massage switch off at the selected timer setting; it has not supplied complete formal temperature, runtime or automatic switch-off test reports, so the timer is not tested overheating protection.
The factory's brochure prints CE, UKCA and FCC for this model, but the CE and UKCA certificates we have seen are held under an earlier customer's application, and that testing has not been repeated since. No CE, UKCA or FCC certification is claimed here; ask for testing in the factory's own name for your order.
Check the battery rules for the 5,000 mAh polymer battery on your shipping route before you book freight.
Ask for the current model-specific manual for use and care with your sample.
Sold as a support and comfort product, not as treatment for any condition.
Either of the factory's two companies, Shenzhen Xinlikang Technology Co., Ltd. (91440300MADDJW45XY) or Shenzhen Shubeijian Technology Co., Ltd. (91440300MAK6QC3E7C), can sign the contract, issue the invoice and receive payment; your quotation names which one.
